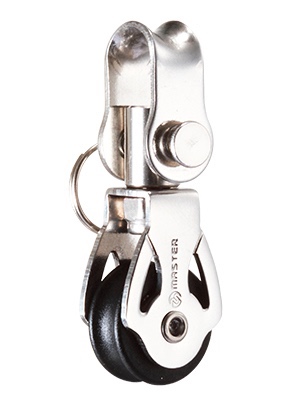

16mm Single Swivel Shackle Block
item NO.：SB-1614F-
Dinghy Blocks
Master's smallest block is perfect for control lines on dinghies. 16mm Stainless steel blocks feature contained stainless steel ball bearing system for smooth rotation. Sideplate is 316 stainless steel for long-term durability and maximum working load.
16mm Single Swivel Shackle Block
SB-1614F
USD$ 26.33
MATERIALS- Sheave: self-lubricant acetal composite
- Ball Bearing: self-lubricant acetal composite
- Sideplates/frames: reinforced glass fiber Nylon composite with UV stablized
- Shackle: Forged Grade 316 stainless steel
APPLICATIONS- Mainsheet system, jib and spinnaker sheets on dinghies to 5m(16ft)
- Halyard, vang and backstay on boats to 8m (26ft)
- Control lines on boats of all sizes
Do not use Master products for human suspension! -
SPECS
Sheave Ø (mm) 16 mm Sheave Ø (in.) 7/8 in Maximum line Ø (mm) 6 mm Maximum line Ø (in.) 1/4 in Weight (g) 16 g Weight (oz.) 0.56 oz Maximum working load (kg.) 120 kg Maximum working load (lb.) 265 lb Maximum breaking load (kg.) 550 kg Maximum breaking load (lb.) 1213 lb -
