Small Composite Cam Cleat, Bulleye, Stainless Steel Plate
item NO.：CB-0602F-
Stainless Steel Plate Composite Cam Cleats
Composite cam cleats features Self-lubricant ball bearing and non-abrasive jaws reducing friction and allowing sailors to engage and release loads instantly. Two sizes in lightweight, wear-resistant, and strong strength UV-stabilized glass fiber reinforced composite. The plate is 316 stainless steel.

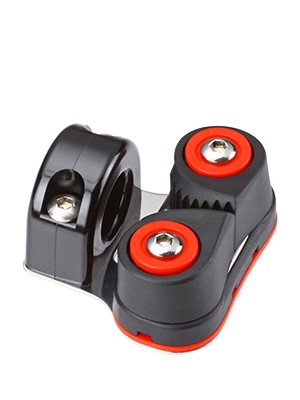

Small Stainless Steel Plate Composite Cam Cleat
CB-0602F
$
MATERIALS- Base: UV-stabilized glass fiber reinforced Nylon composite
- Ball Bearing: self-lubricant acetal composite
- Spring: Grade 316 stainless steel
- Plate: Grade 316 stainless steel
Do not use Master products for human suspension! -
SPECS
Height (mm) 22 mm Height (in.) 7/8 in Width (mm) 24 mm Width (in) 1 5/16 in Maximum line Ø (mm) 3~6 mm Maximum line Ø (in) 1/8~1/4 in Fasten spacing (mm) 27 mm Fasten spacing (in) 1 1/16 in Fasteners (mm) 4 RH mm Fasteners (in) #8 RH in Weight (g) 95 g Weight (oz) 3.35 oz Maximum working load (kg.) 80 kg Maximum working load (lb) 177 lb Maximum breaking load (kg.) 160 kg Maximum breaking load (lb) 353 lb -
