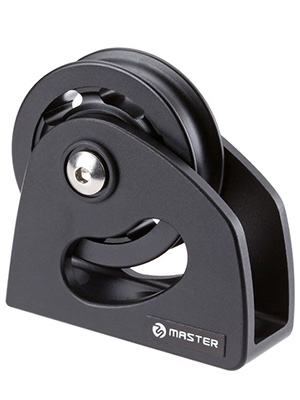

75mm Upright Lead Block

item NO.：HL-0701F
Detail Specs

  • Upright Lead Blocks

    Upright lead blocks are made by one piece machine made sideplate for perfect balance between weight and strength.  Stainless steel sleeve and two races ball bearing provide smooth rotation for extreme high loads. All materials are UV-resistant adn anti-corrosion for maximum protection and long lasting durability.


    75mm Upright Lead Block
    HL-0701F
    $

    MATERIALS
    • Sheave: Black hardcoat anodized Aluminum
    • Ball Bearing: 316 stainless steel sleeve bearing and two races Derlin® ball bearing
    • Sideplates/frames: Black hardcoat anodized Aluminum
    Do not use Master  products for human suspension!




  • SPECS

    Sheave Ø (mm) 75mm Sheave Ø (in.) 2 15/16 in.
    Maximum line Ø (mm) 12mm Maximum line Ø (in.) 1/2 in.
    Weight (g) 358g Weight (oz.) 12.63oz.
    Maximum working load (kg.) 2500kg. Maximum working load (lb.) 5512lb.
    Maximum breaking load (kg.) 5300kg. Maximum breaking load (lb.) 11684lb.
