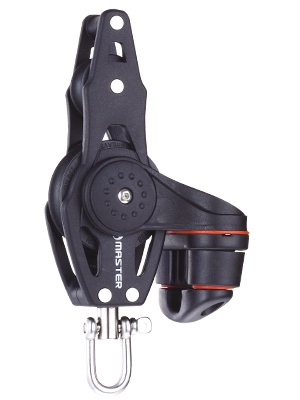

40mm Single Fiddle Swivel Shackle, Fairlead Cleat, Becket Block
item NO.：BB-0422F-
Windrider Ball Bearing Blocks
Master Windrider blocks are engineered for competitive sailing. The high strength composite sideplates are to provide top performance of working loads. The excellent weather-ability protects blocks from breaking down for any sailing conditions. Available in comprehensive range of sizes for different rope diameters and configurations. Master blocks are beautiful in design, but simple in use.
40mm Single Fiddle Swivel Shackle, Fairlead Cleat, Becket Block
BB-0422F
$101.36
MATERIALS- Sheave: self-lubricant acetal composite
- Ball Bearing: self-lubricant acetal composite
- Sideplates/frames: reinforced glass fiber Nylon composite with UV stablized
- Shackle: Forged Grade 316 stainless steel
Applications- Mainsheet system, jib and spinnaker sheets on dinghies to 5m(16ft)
- Halyard, vang and backstay on boats to 8m (26ft)
- Control lines on boats of all sizes
Do not use Master products for human suspension! -
SPECS
Sheave Ø (mm) 40mm Sheave Ø (in.) 1 9/16in. Maximum line Ø (mm) 10mm Maximum line Ø (in.) 3/8 in. Weight (g) 112g Weight (oz.) 3.95 oz. Maximum working load (kg.) 230kg. Maximum working load (lb.) 508lb. Maximum breaking load (kg.) 800kg. Maximum breaking load (lb.) 174lb. -
